Description

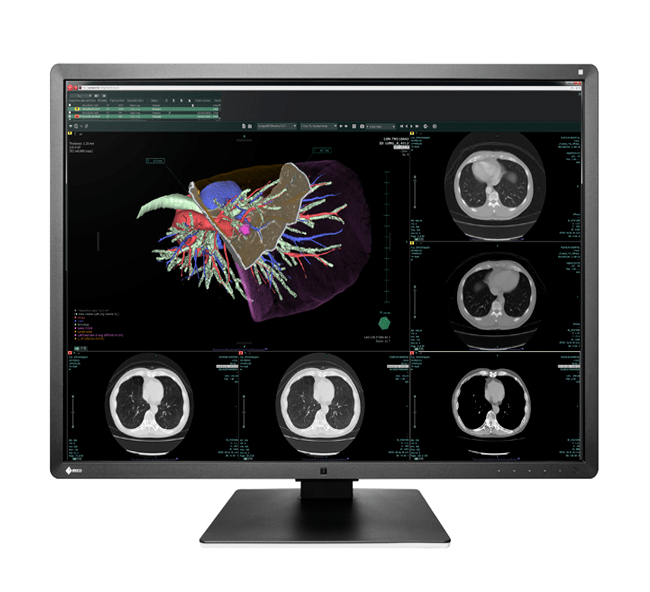

RadiForce RX660
6MP 76cm (30.0″) COLOR LCD MONITOR
This monitor is ideal for viewing a variety of medical images at the same time including CR, DR, CT, MRI, and ultrasound. Featuring a new design and unique EIZO technology, this monitor offers precise medical image viewing as well as ease-of-use.
SPECIFICATIONS:
| Model Variations | RX660: Anti-Glare coating RX660-AR: Anti-Reflection coating |
| Cabinet Color | Black |
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 76 cm / 30.0″ |
| Native Resolution | 3280 x 2048 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 645.5 x 403.0 mm |
| Pixel Pitch | 0.1968 x 0.1968 mm |
| Display Colors | 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million from a palette of 68 billion colors |
| Viewing Angles (H / V, typical) | 176° / 176° |
| Brightness (typical) | 1,000 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 25 ms (on / off) |
| Video Signals | |
| Input Terminals | DVI-D (dual link) x 1, DisplayPort x 2 |
| Output Terminals | DisplayPort x 1 (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 – 127 kHz / 22 – 61 Hz Frame synchronous mode: 29.5 – 30.5 Hz, 59 – 61 Hz |
| USB | |
| Function | 2 upstream, 3 downstream |
| Standard | USB 2.0 |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 190 W |
| Typical Power Consumption | 93 W |
| Power Save Mode | Less than 1.6 W |
| Power Management | DVI DMPM, DisplayPort 1.2a |
| Sensor | Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | CAL Switch |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight | 14.2 kg |
| Net Weight (Without Stand) | 10.1 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC |
| FDA 510(k) Clearance | General Radiography |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cables (DVI-D – DVI-D [dual link supported], DisplayPort – DisplayPort x 2, short DisplayPort – DisplayPort), USB cable x 2, cable cover, Utility Disk (RadiCS LE, PDF instructions for use, PDF installation manual), instructions for use |
| Warranty | Five Years |
