Description

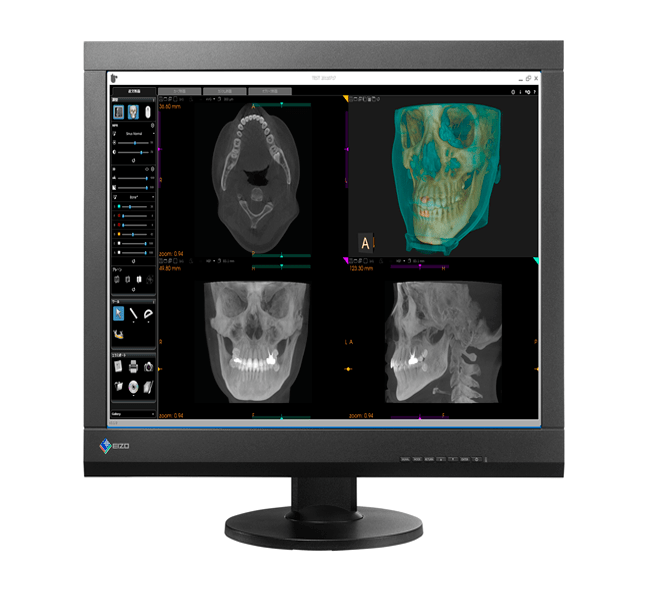

RadiForce MX242W
2.3MP 61cm (24.1″) COLOR LCD MONITOR
The LED backlight for MX242W offers a significantly longer hours of operation over conventional CCFL backlights. It is possible now to maintain high brightness while simultaneously lowering power consumption. Since the LED backlight is mercury-free, it will also reduce any potential impact on the environment when the monitor disposed.
The widescreen 16:10 aspect ratio provides significantly more horizontal space than the aspect ratios of conventional square monitors and allows you to view the screen from the side with minimal color shift, also permitting more than one person to view the monitor comfortably at the same time.
Patented Drift Correction function will quickly stabilizes the brightness level of the monitor upon startup or wakup from sleep mode, giving you the most accurate images quickly ready for viewing. As well as, a sensor measures the backlight brightness fluctuations caused by ambient temperature and aging for a consistently stable image display.
SPECIFICATIONS:
| Cabinet Color | Black |
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 61 cm / 24.1″ |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch | 0.270 x 0.270 mm |
| Display Colors | 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million from a palette of 68 billion colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 350 cd/m2 |
| Recommended Brightness for Calibration | 180 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 12 ms (on / off) |
| Video Signals | |
| Input Terminals | DVI-I x 1, DisplayPort x 1 |
| Digital Scanning Frequency (H / V) | 31 – 76 kHz / 59 – 61 Hz |
| Analog Scanning Frequency (H / V) | 26 – 76 kHz / 49 – 71 Hz |
| Sync Formats | Separate |
| USB | |
| Function | 1 upstream, 2 downstream |
| Standard | USB 2.0 |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 68 W |
| Typical Power Consumption | 31 W |
| Power Save Mode | Less than 0.5 W |
| Power Management | Digital: DVI DMPM, DisplayPort 1.1a Analog: VESA DPM |
| Sensor | Backlight Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | CAL Switch |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight | 8.7 kg |
| Net Weight (Without Stand) | 6.0 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device Directive), EN60601-1, UL60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, Canadian ICES-003-B, RCM, RoHS, China RoHS, WEEE, CCC, GOST-R |
| FDA 510(k) Clearance | Yes (for General Radiography) |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cable (DVI-D – DVI-D, DisplayPort – DisplayPort) , USB cable, Utility Disk (RadiCS LE, ScreenManager Pro for Medical, PDF instructions for use, PDF installation manual), instructions for use |
| Warranty | Five Years |
