Description
RadiForce RX560
5MP 54.1cm (21.3″) COLOR LCD MONITOR

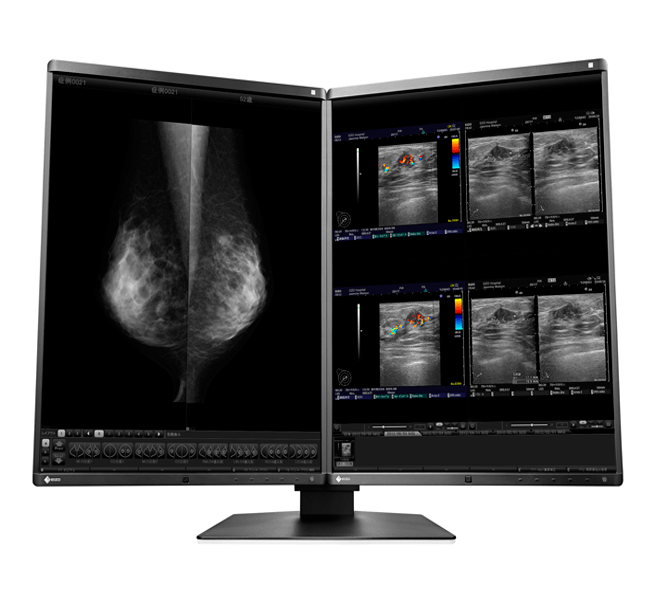

The RX560 MammoDuo integrates two RX560 monitors side by side on a specifically designed stand.This 5 megapixel, high-brightness color monitor has the high-definition display necessary for breast imaging. It combines ease-of-use, such as a narrow bezel design to help your eyes swiftly move from one monitor to another, with new functions to help you focus on your work and maintain high performance
SPECIFICATIONS:
| Model Variations | RX560-MD: Anti-Glare coating, two screens, dual stand RX560-AR-MD: Anti-Reflection coating, two screens, dual stand RX560: Anti-Glare coating, one screen RX560-AR: Anti-Reflection coating, one screen |
| Cabinet Color | Black |
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 54.1 cm / 21.3″ |
| Native Resolution | 2048 x 2560 (4:5 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 422.4 mm |
| Pixel Pitch | 0.165 x 0.165 mm |
| Display Colors | 10-bit colors (DisplayPort) : 1.07 billion (maximum) colors 8-bit colors: 16.77 million from a palette of 543 billion colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 1100 cd/m2 |
| Recommended Brightness for Calibration | 500 cd/m2 |
| Contrast Ratio (typical) | 1500:1 |
| Response Time (typical) | 12 ms (on / off) |
| Video Signals | |
| Input Terminals | DVI-D (dual link) x 1, DisplayPort x 1 |
| Output Terminals | DisplayPort x 1 (daisy chain) |
| Digital Scanning Frequency (H / V) | 31 – 135 kHz / 23 – 61 Hz Frame synchronous mode: 23.5 – 25.5 Hz, 47 – 51 Hz |
| USB | |
| Function | 1 upstream, 2 downstream |
| Standard | USB 2.0 |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 87 W |
| Typical Power Consumption | 43 W |
| Power Save Mode | Less than 1 W |
| Power Management | DVI DMPM, DisplayPort 1.2a |
| Sensor | Backlight Sensor, Integrated Front Sensor, Presence Sensor, Ambient Light Sensor |
| Features & Functions | |
| Brightness Stabilization | Yes |
| Digital Uniformity Equalizer | Yes |
| Hybrid Gamma PXL | Yes |
| Preset Modes | CAL Switch |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Net Weight | RX560-MD, RX560-AR-MD: 17.3 kgRX560, RX560-AR: 8.1 kg |
| Net Weight (Without Stand) | 5.3 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC
* For RX560 and RX560-AR |
| FDA | 510(k) Clearance for Breast Tomosynthesis, Mammography, and General Radiography |
| Dedicated Software | |
| Monitor Quality Control Software RadiCS | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | RX560-MD, RX560-AR-MD: AC power cords x 2, signal cables (DVI-D – DVI-D [dual link supported ] x 2, DisplayPort – DisplayPort x 2, short DisplayPort – DisplayPort), USB cables x 2, Utility Disk (RadiCS LE, PDF installation manual), instructions for useRX560, RX560-AR: AC power cord, signal cables (DVI-D – DVI-D [dual link supported], DisplayPort – DisplayPort), USB cable, Utility Disk (RadiCS LE, PDF installation manual), instructions for use |
| Warranty | Five Years |
