Description

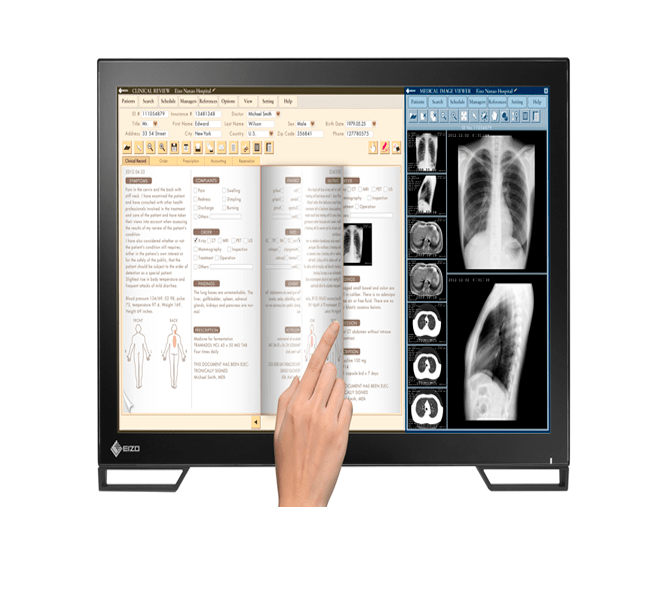

RadiForce MS236WT
2MP 58cm (23.0″) MULTITOUCH COLOR LCD MONITOR
Detailed Handwriting Input tool with DICOM Preset Mode for Displaying Medical Records. Drag and flick finger operations to be smooth. Commercial active stylus pens are also approved by Eizo. Easy to write small and detailed letters into a medical record. The touch monitor can detect up to 10 simultaneous touches from different people at the same time. It also equipped with palm rejection so you can rest your hand directly on the screen without causing any unintended touches
SPECIFICATIONS:
| Model Variations | With Reclining Stand, Without Stand |
| Cabinet Color | Gray, Black |
| Panel | |
| Type | Color (IPS) |
| Backlight | LED |
| Size | 58 cm / 23.0″ |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 509.2 x 286.4 mm |
| Pixel Pitch | 0.265 x 0.265 mm |
| Display Colors | 8-bit colors: 16.77 million from a palette of 1.06 billion colors |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 260 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 11 ms (midtone) |
| Touch Panel | |
| Type | Projected Capacitive |
| Communication Protocol | USB |
| Surface Hardness | 5 H |
| Compatible OS | Windows 10 (64-bit, 32-bit) / Windows 8.1 (64-bit, 32-bit) / Windows 7 (64-bit, 32-bit) |
| Video Signals | |
| Input Terminals | DVI-D x 1, DisplayPort x 1, D-Sub mini 15 pin x 1 |
| Digital Scanning Frequency (H / V) | DVI: 31 – 64 kHz / 59 – 61 Hz (VGA Text: 69 – 71 Hz) DisplayPort: 31 – 68 kHz / 59 – 61 Hz (VGA Text: 69 – 71 Hz) |
| Analog Scanning Frequency (H / V) | 31 – 81 kHz / 55 – 76 Hz |
| Sync Formats | Separate |
| USB | |
| Function | 1 port for touch panel control, 2 downstream |
| Standard | USB 2.0 |
| Audio | |
| Speakers | 1.0 W + 1.0 W |
| Input Terminals | 3.5 mm stereo jack, DisplayPort |
| Output Terminals | 3.5 mm headphone jack |
| Sound Adjustment | Volume, Source (DisplayPort) |
| Power | |
| Power Requirements | AC 100 – 240 V: 50 / 60 Hz |
| Maximum Power Consumption | 42 W |
| Typical Power Consumption | 19 W |
| Power Save Mode | Less than 0.7 W |
| Power Management | Digital: DVI DMPM, DisplayPort 1.1a Analog: VESA DPM |
| Features & Functions | |
| Preset Modes | Color Mode (User1, User2, sRGB, DICOM) |
| OSD Languages | English, German, French, Spanish, Italian, Swedish, Japanese, Simplified Chinese, Traditional Chinese |
| Physical Specifications | |
| Net Weight | 6.6 kg |
| Net Weight (Without Stand) | 6.0 kg |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Certifications & Standards (Please contact EIZO for the latest information.) | CE (Medical Device Directive), EN60601-1, ANSI/AAMI ES60601-1, CSA C22.2 No. 601-1, IEC60601-1, VCCI-B, FCC-B, CAN ICES-3 (B), RCM, RoHS, China RoHS, WEEE, CCC, EAC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | AC power cord, signal cables (DVI-D – DVI-D, DisplayPort – DisplayPort), USB cable, audio cable, touch pen, holder for touch pen, Utility Disk (user’s manual, touch panel driver, TPOffset), cleaning cloth, Mask sheet |
| Warranty | Three Years |
